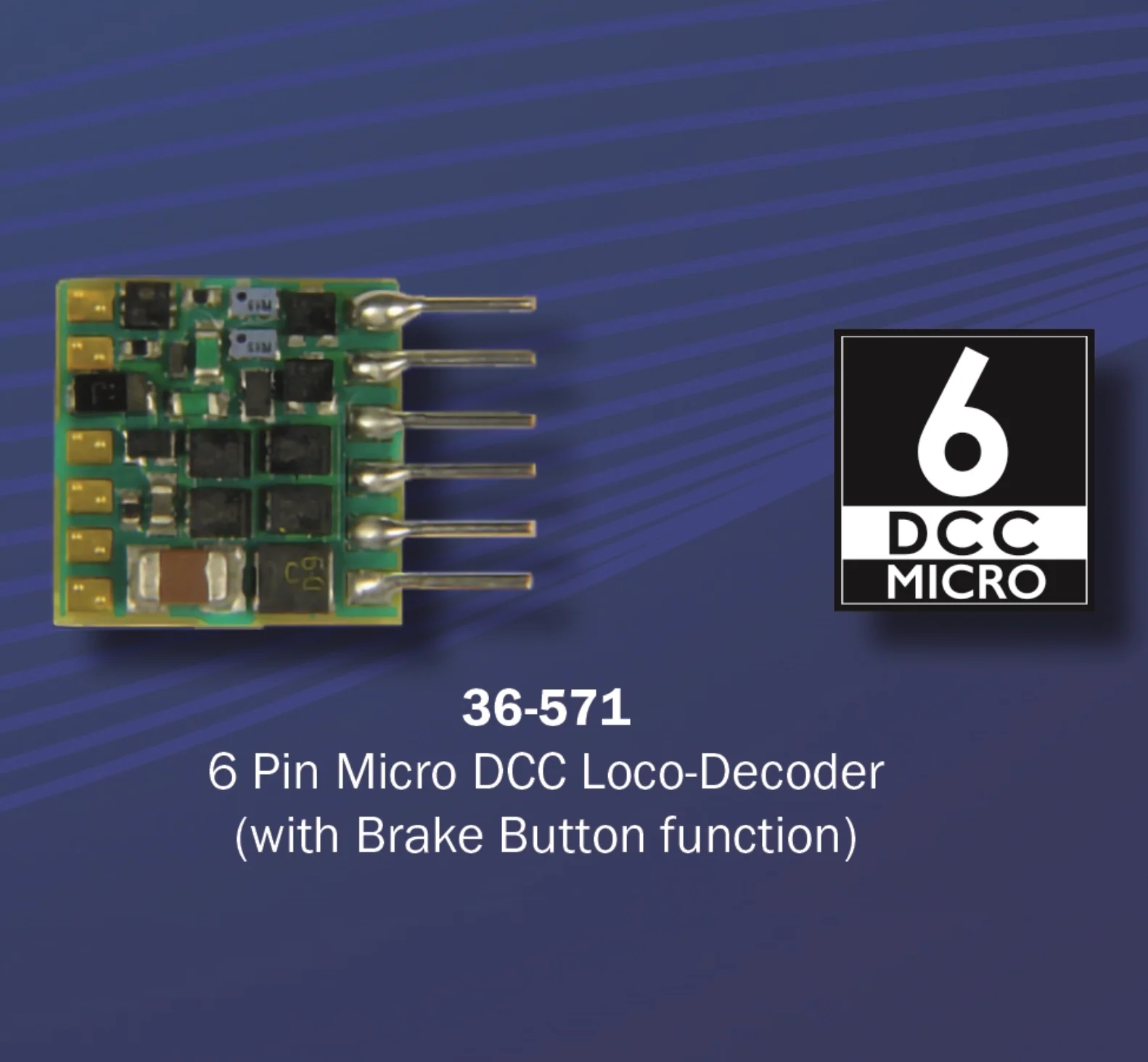

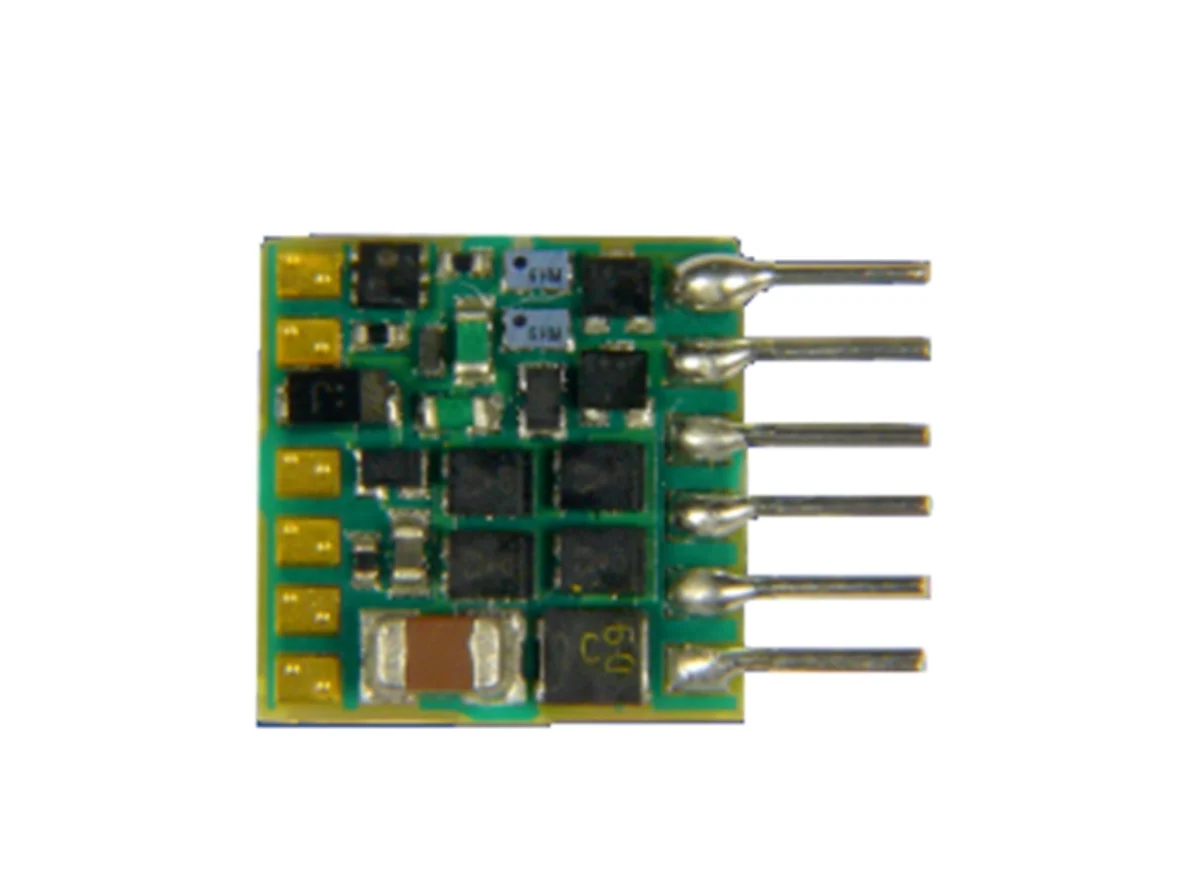

36-571 6 Pin Micro DCC Loco-Decoder (with Brake Button function)

A 6 Pin (NEM651) DCC Decoder suitable for models fitted with a 6 Pin DCC decoder socket and where minimal space is available for the decoder, for instance the Graham Farish Class N Scale 03 and 04 Diesel Shunters and the Bachmann Narrow Gauge OO9 Scale Quarry Hunslets.

Highlights include:

• Multi-mode (NMRA-DCC format, Motorola protocol and DC Analogue) with Back EMF function
• 6 powered function outputs
• 0.7A continuous load
• Suitable for models equipped with DC motors (including coreless motors)
• Brake Button function for realistic control of braking (operates on F2)

Operating Modes

• Multi-mode (NMRA-DCC format, Motorola protocol and DC Analogue) with Back EMF function
• 14, 28 and 128 speed steps
• Short and Long addresses

Motor Control Features

• Suitable for models equipped with DC motors (including coreless motors)
• 0.7A continuous load
• Variable pulse width frequency motor regulation (up to 40kHz)
• Motor output overload protection; Back EMF (de-selectable)

Function Outputs

• 6 powered-function outputs with overload protection (4 outputs connect via solder pads)
• 500mA load per output
• 500mA total load of all function outputs
• Shunting speed and momentum key selectable

Dimensions

• 8mm x 8mm x 2.4mm

Default Address

• Address 3

Programming

• DCC Service Mode & DCC PoM (Programming on Main)

Additional Features

• RailCom® Feedback system
• Upgradable firmware
