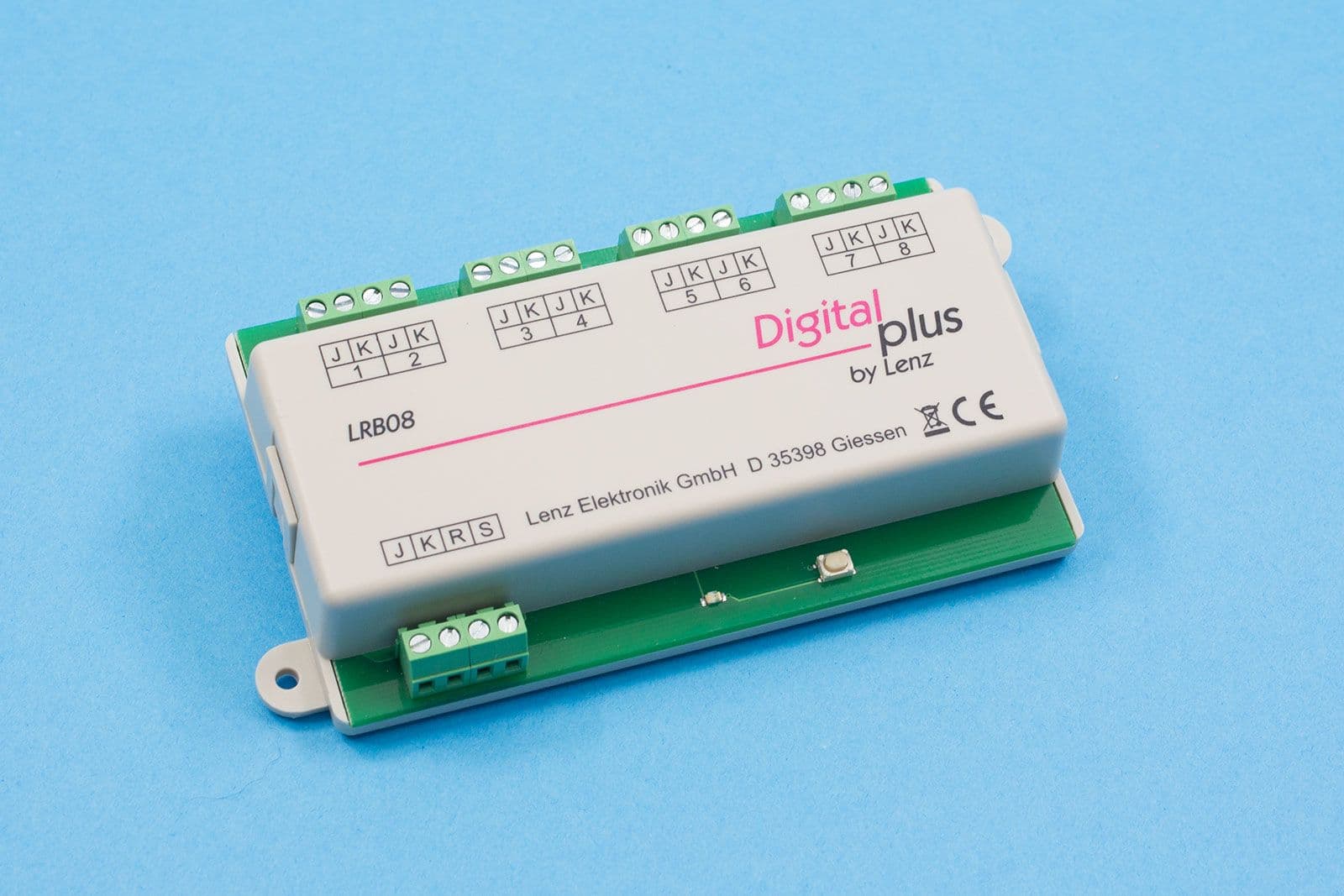

11230 LRB08 Feedback module

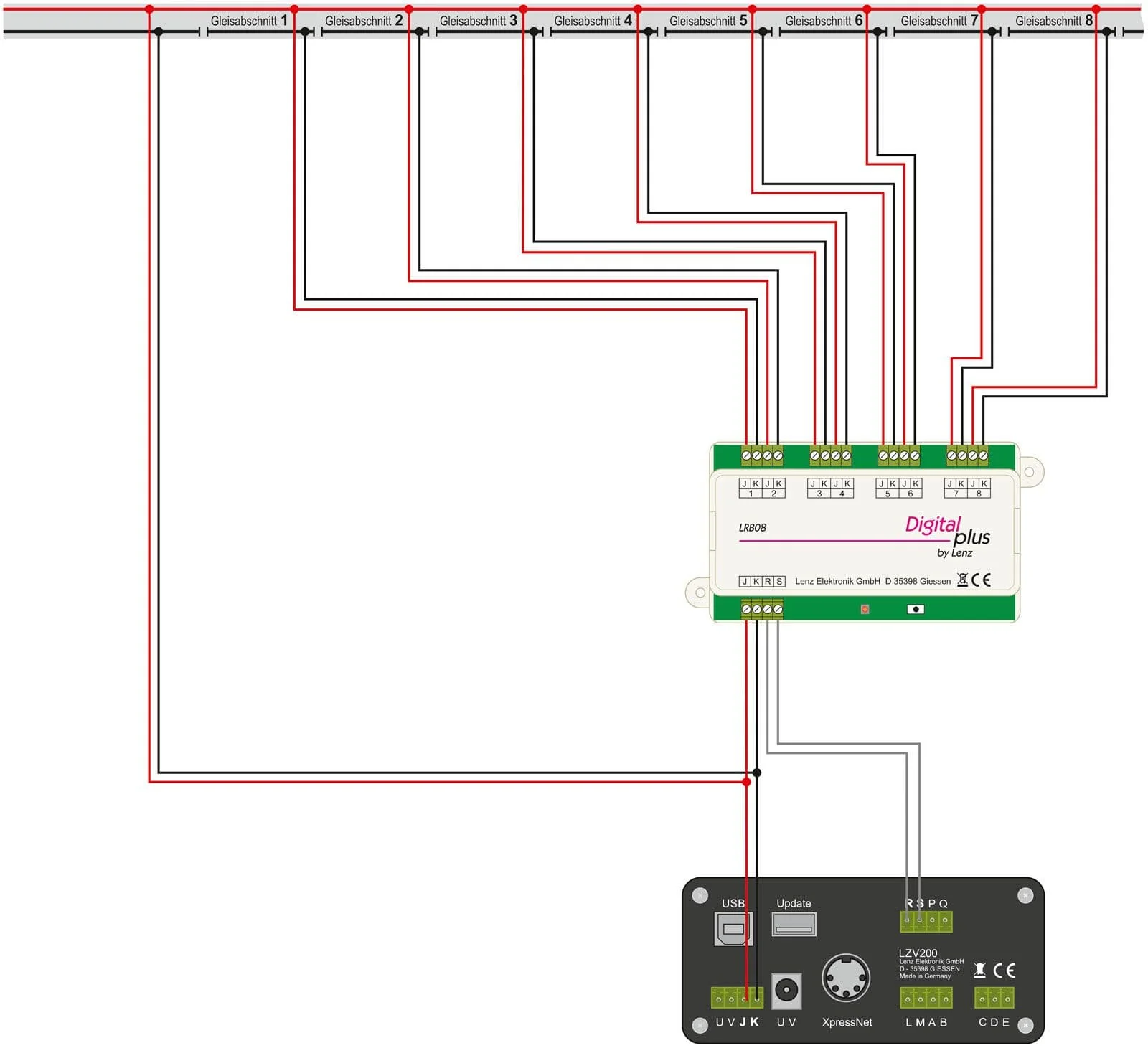

The LRB08 is a combined occupancy and feedback detector. This combination in one device simplifies the wiring of the model railway considerably compared to the LR101 and LB101 modules. The occupancy status of up to 8 track sections can be monitored independently by one LRB08. The statuses are reported via the R, S bus to the LZV200 central unit (LZV100, LZ100). The maximum current capacity of each section is 4A. The total load capacity (current flow at all outputs) must not exceed 5A.
Manual for LRB08
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The LRB08 is a combined occupancy and feedback detector. This combination in one device simplifies the wiring of the model railway considerably compared to the LR101 and LB101 modules. The occupancy status of up to 8 track sections can be monitored independently by one LRB08. The statuses are reported via the R, S bus to the LZV200 central unit (LZV100, LZ100). The maximum current capacity of each section is 4A. The total load capacity (current flow at all outputs) must not exceed 5A.
Manual for LRB08
