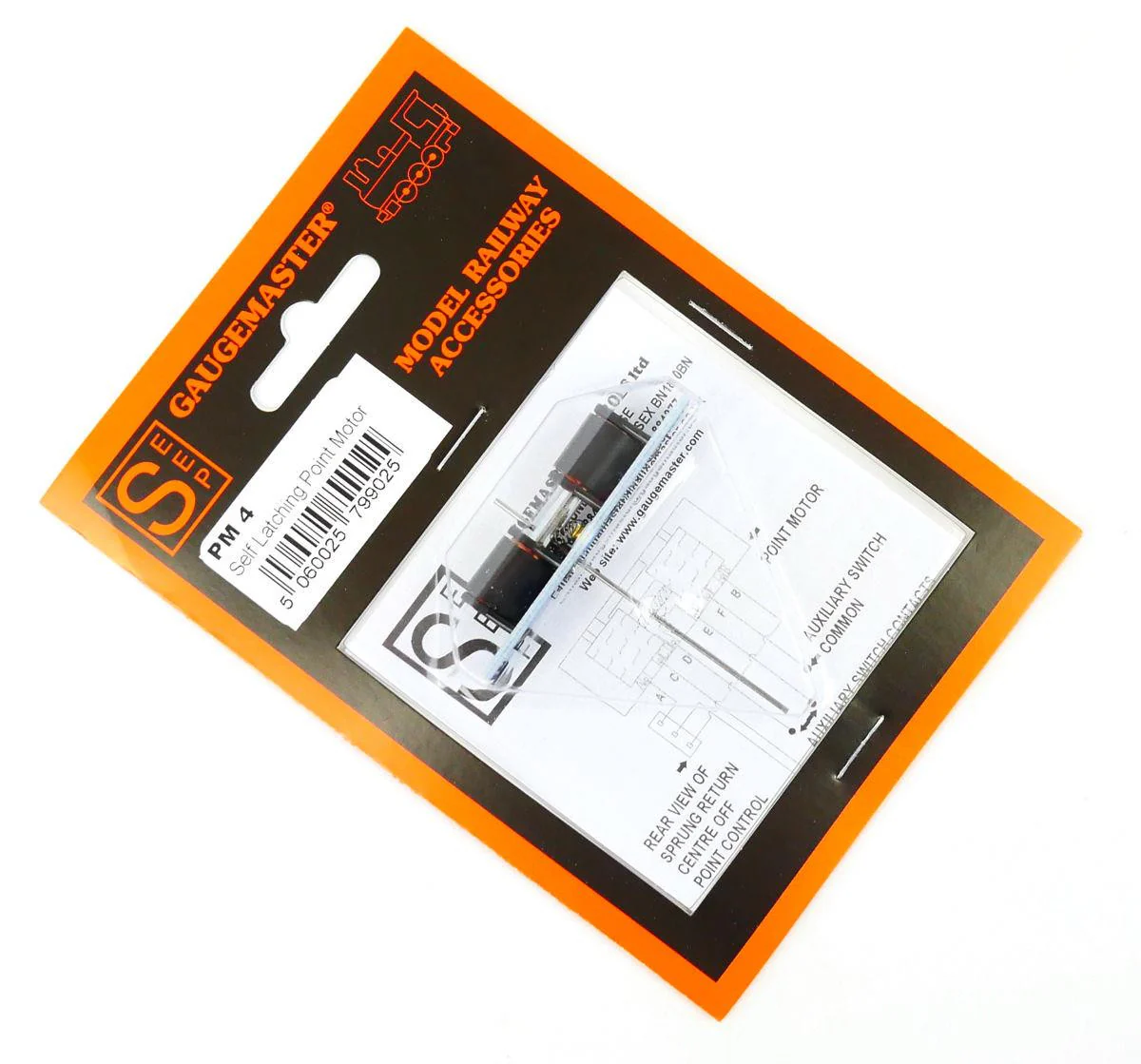

PM4 Seep Point Motor with Latching Mechanism

Seep Point Motors have the advantage of being easy to fix under the baseboard, requiring only a small slot to operate the point. The PM-4 is our best point motor for throwing points that have lost the over centre spring or are a bit heavy to move. It also features a change over switch for changing polarity and LEDs if required.

Point Motor	Name
PM1	Seep Point Motor with Built-In Switch
PM2	Seep Point Motor No Switch
PM4	Seep Point Motor with Latching Mechanism

TECHNICAL DETAILS

• INPUT 16v AC

MEASUREMENTS

• LENGTH 54mm
• WIDTH 12mm
• HEIGHT 12mm
• DRIVE ROD LENGTH 41mm

GMC-PM4 - Instructions - Click here to download
