PS135 X04 Motor Upgrade 3 Pole

Peters Spares PS135 X04 Upgrade / Replace Your Tired Old X04 Motor With Our 3 Pole Replacement.

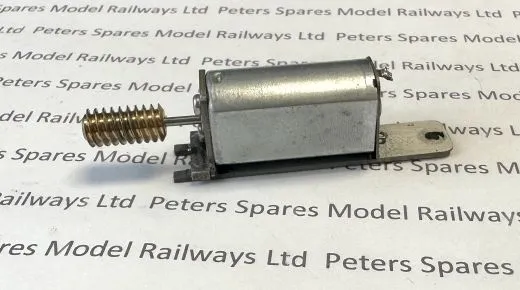

You get a modern 3 pole motor screwed to a frame plus a rear bracket and worm. Chassis in photos are for demonstration and not included.

Motor Voltage 2-12Volt DC (Can be used with DCC Decoders)

Motor Shaft 1.5mm

No Load Time

RPM 14000+-12%rpm

Electric Current 0.04A/0.6Amax

Stalling Time

Moment 80gf. cm

Electric Current 1.2A/1.68Amax

Rated Power Hour

RPM 11839+-12%rpm

Moment of force 12gf. cm

Power 1.5W

Maximum Power 2.87W

(For Locos Such As B12 / A3 / Coronation / Hall / Sir Dinadan / Ivatt / 08 Shunter Using S4307 / X518 / X963 Blocks A Small bend is needed in the bottom frame to get it to fit and also not to press too much on the worm wheel
