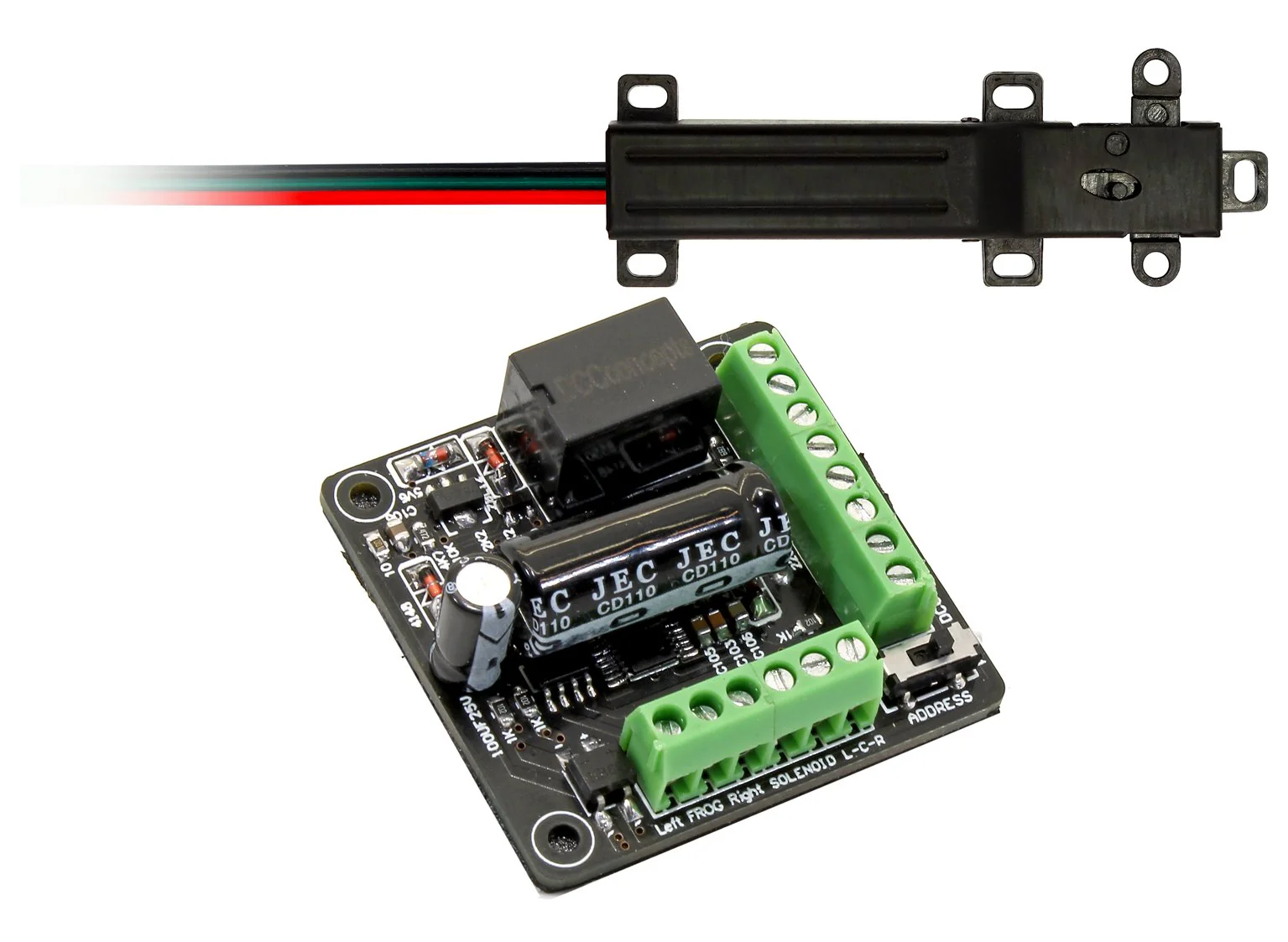

RPM-SMD.1 Rails Connect High Efficiency Surface Mount DIGITAL Point Motor (Single Pack)

Rails Connect Point Motors - A range of super high quality analogue and digital solenoid point motors designed with you in mind!

Crafted for Rails by DCCconcepts.

Features:

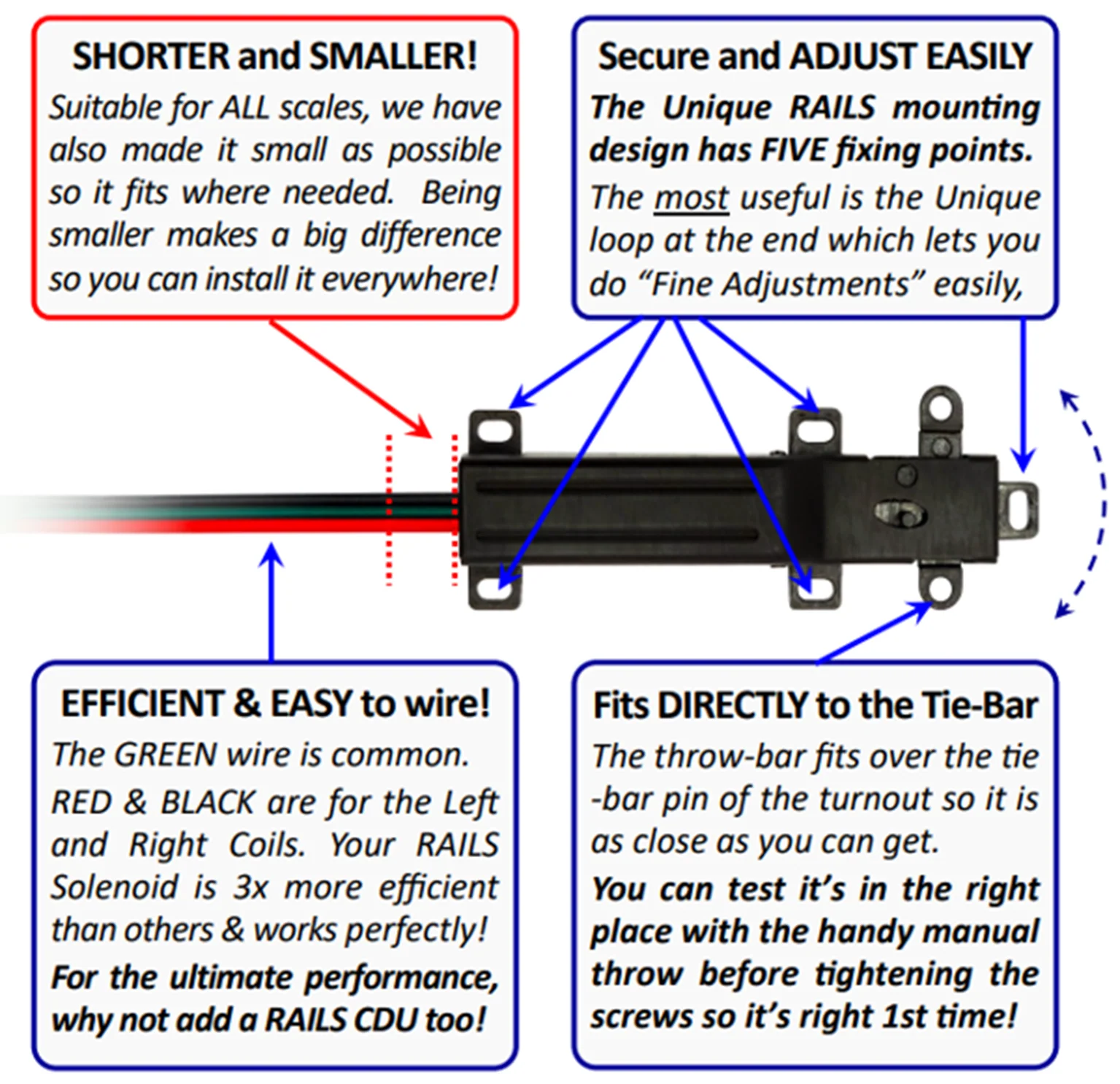

• Smaller and shorter - suitable for all scales
• Simple to install and adjust with unique mounting points
• Connects directly to the tie-bar
• Pre-wired, stripped and tinned - no soldering needed!

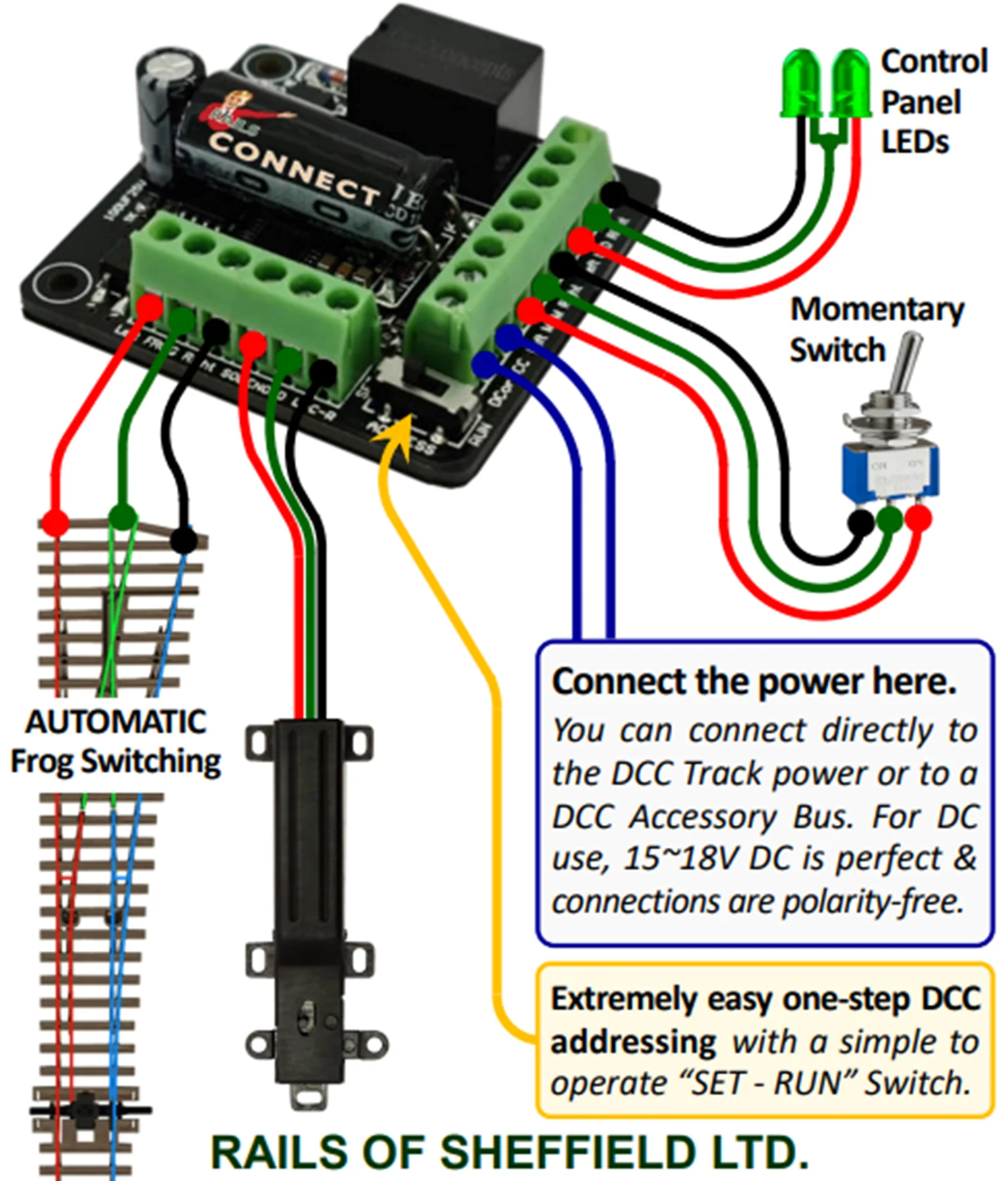

• High-power accessory decoder with frog-switching included - just connect to your DCC bus or to 15-18V DC!

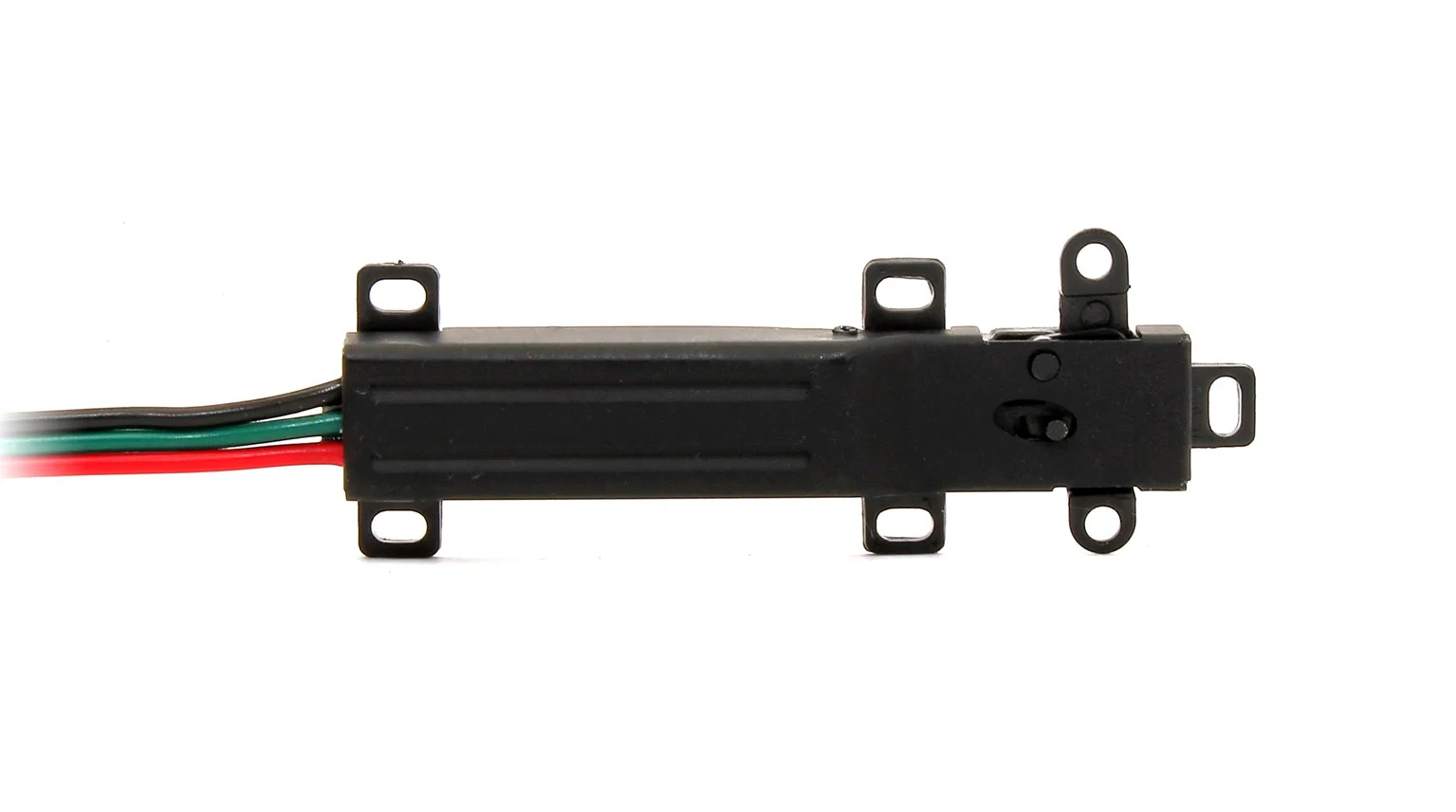

Dimensions of point motor (measured at widest points including connection lugs):

Length = 60mm Width = 22mm Depth = 8mm
