TTSCS5 Lineside Scenic Sound Module

Bring life to any layout!

Sounds can really bring a layout to life and these modules make it so easy; just connect two wires to the nearest power source, hide the module, and turn it on.

Features:

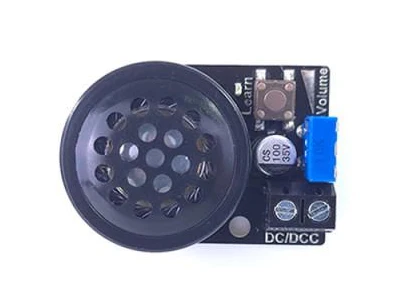

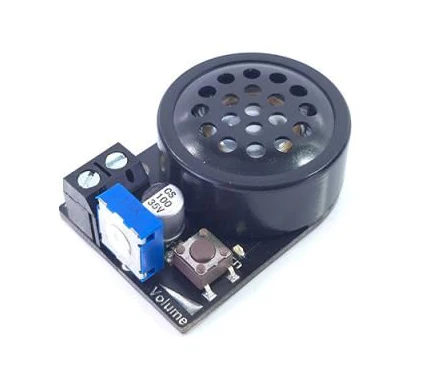

• Compact sound module with built-in loudspeaker

• Real natural sounds specially recorded for these modules

• Easy connections - Just two screw terminals for power input

• Power from a 9-16V smooth DC supply for natural random sounds

• Power from a DCC bus or feed for control of each sound by DCC address

• Fits inside a model or under the baseboard

• Built-in adjustable volume control

When powered by DC:
Modules play an appropriate background sound with individual sounds played randomly.

When powered by DCC:
Modules can play randomly as above, or individual sounds can be played on command by DCC accessory; e.g.Point throw played as a point changes, signal rodding etc.

Sounds on this module include:

• Point throws

• Semaphore Signal clunks

• Signal rodding

• Signal Box Bell (Attention/Clear)

• Train Passing

• Train Departing


Measurements

• Length    42mm

• Width    29mm

• Height    13mm

• Speaker Diameter (Ø)    23mm
